BG Lift M060 Li-ion Mini Crawler Crane
Description
Product Description
- Mini crawler crane BG Lift M060 Li‑ion, electric and silent
- Max lifting height 4.25 m (13.9 ft) with hydraulic boom
- Max horizontal reach 3.01 m (9.9 ft)
- Lifting capacity 580 kg (1,280 lb) at 1.3 m
- Rotation ±25° (50° total) for precise positioning
- Compact dimensions : 1.44 m × 0.78 m × 1.78 m (L×W×H)
- Machine weight 720 kg + ballast 200 kg (total 920 kg)
- Extendable hydraulic tracks, low ground pressure
Applications & Benefits
- Perfect for indoor use or on fragile floors thanks to the 100 % electrical power supply
- Extreme maneuverability in narrow access areas thanks to its reduced dimensions
- Fine rotation and stability for precise lifting in confined spaces
- Clean operation, without noise or emissions
- Remote control by radio remote control for added security
The M060 Li-ion is a compact, powerful and quiet mini-crane, ideal for precise lifting in sensitive environments.

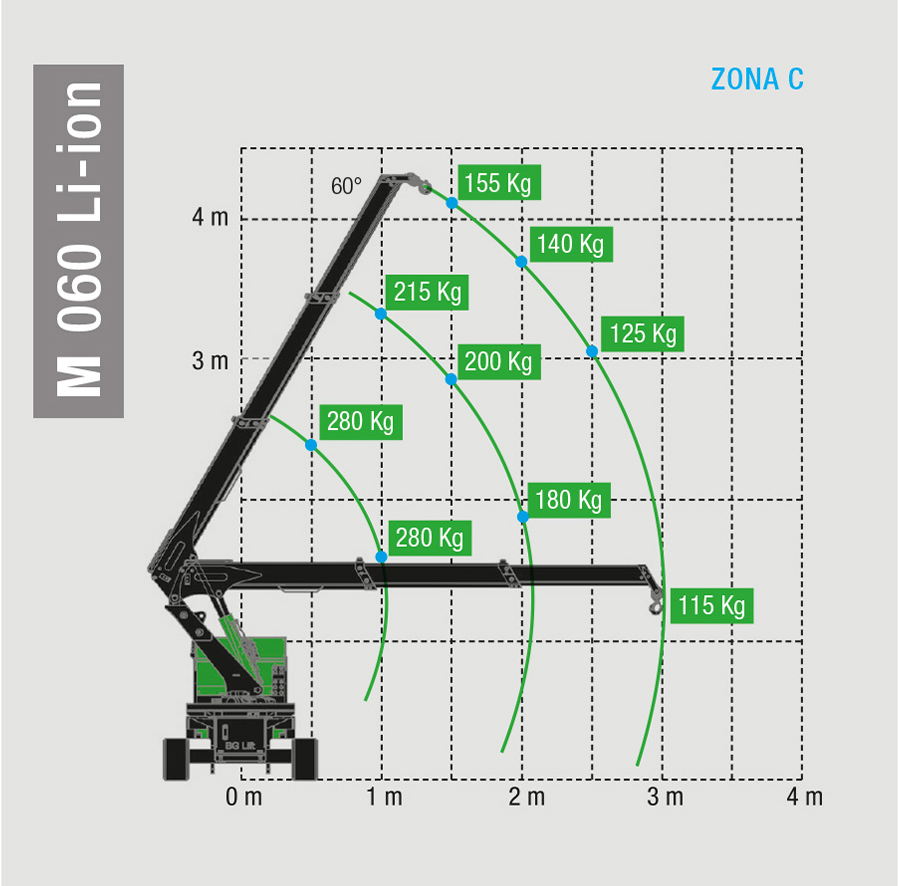

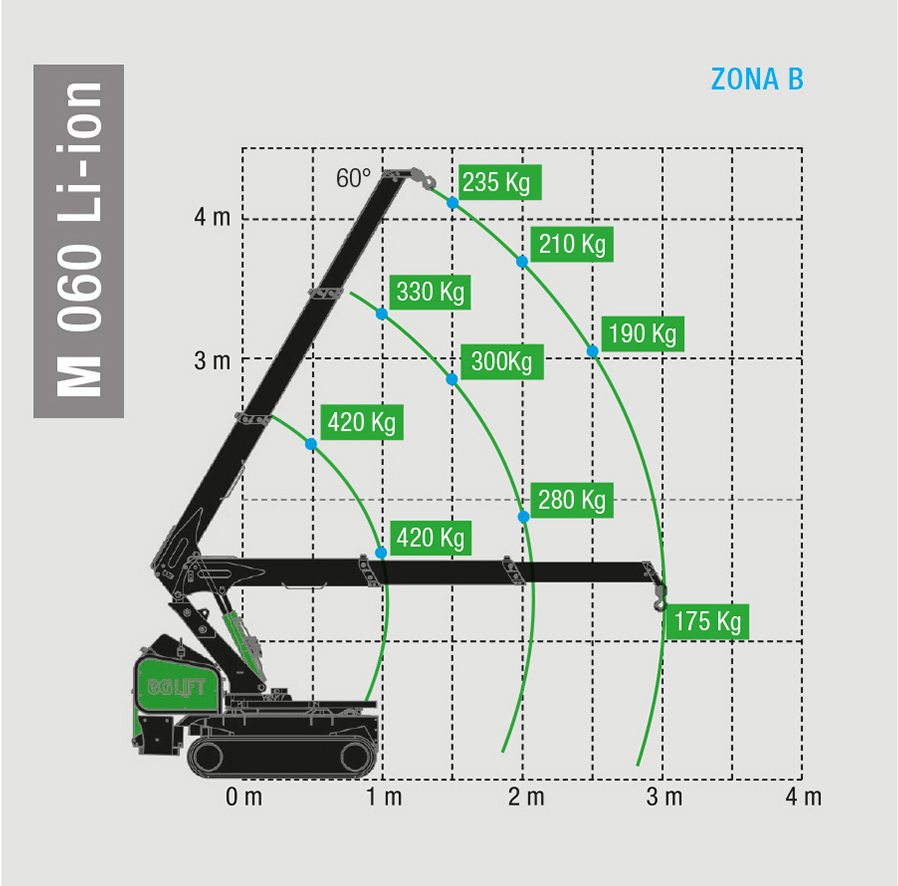

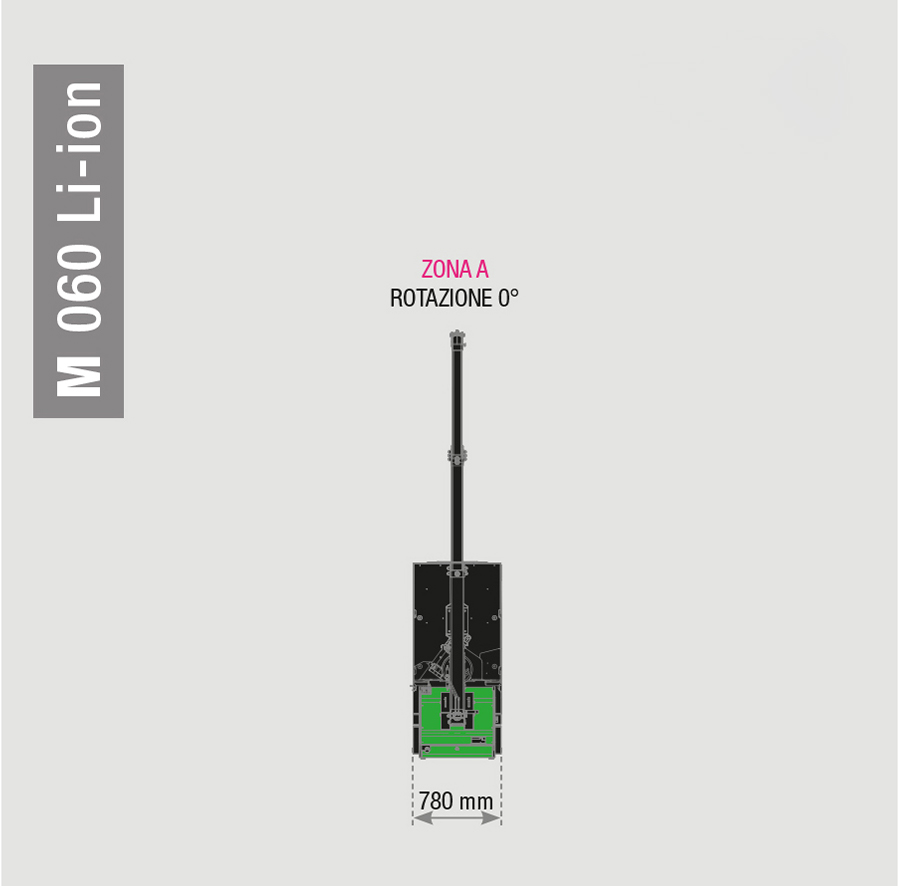

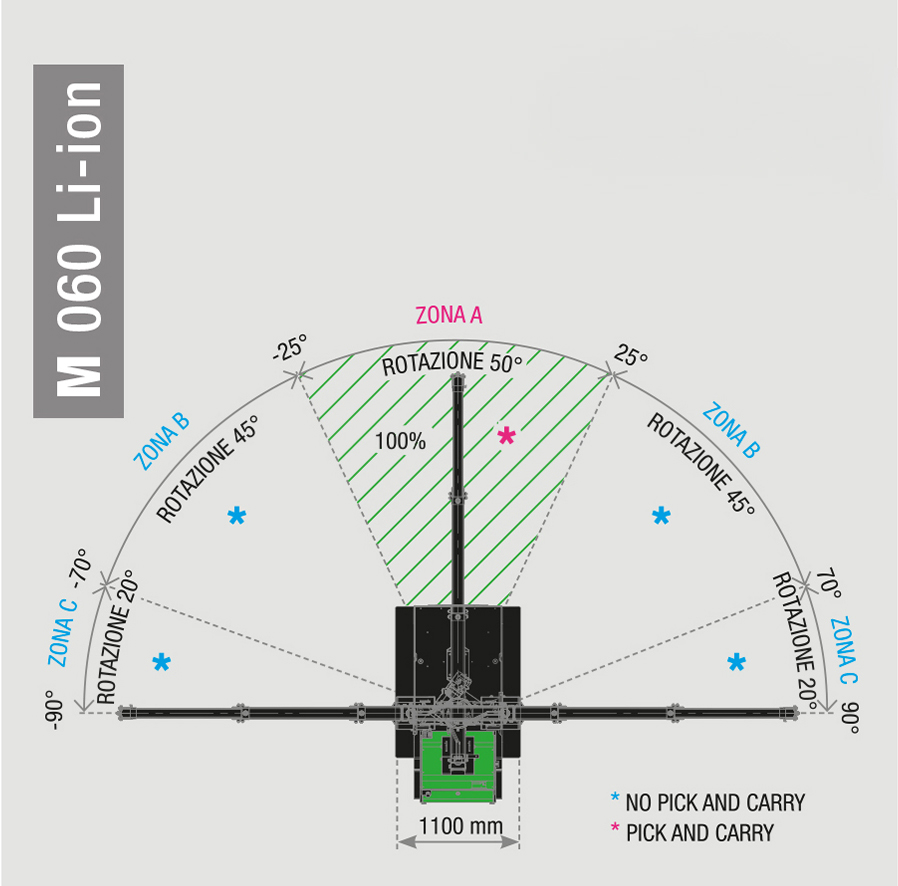

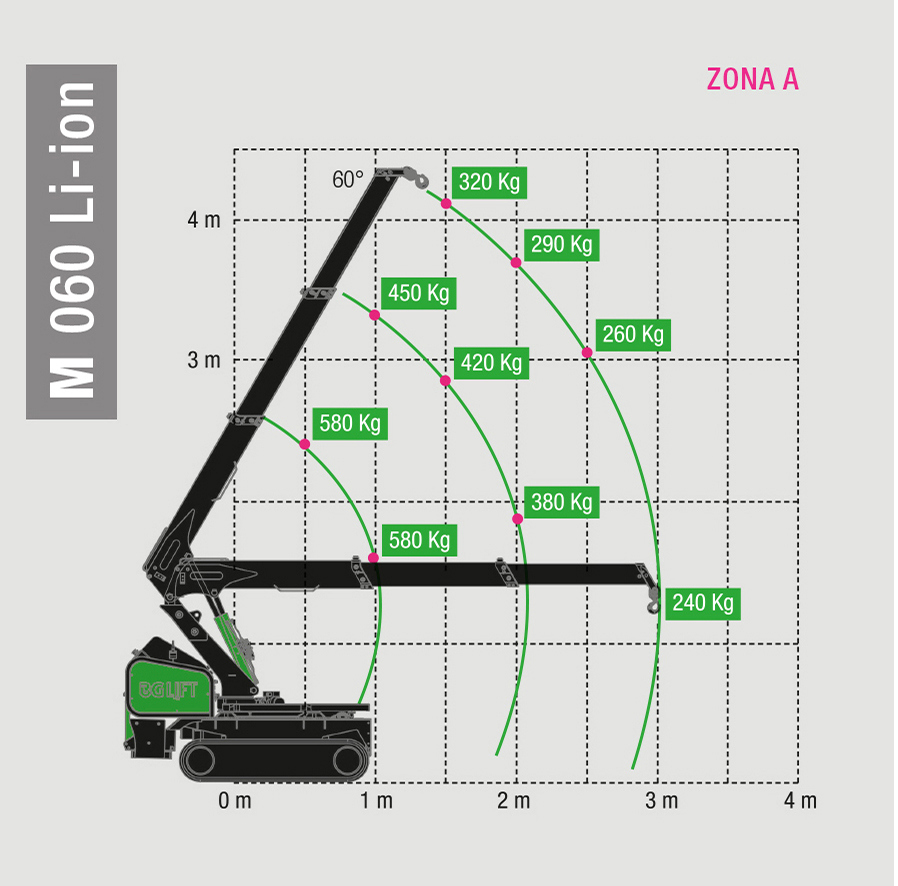

Lifting charters
Details
| Lifting height: | 4.25m / 13' 1" |
| Maximum hook capacity: | 1278 lbs / 580 kg |
| Brand: | BGlift |
| Model: | M060 Lithium |
| Minimum Width: | 780mm / 2' 6" |
| Minimum Height: | 1.42 m / 4' 8" |
| Maximum horizontal reach: | 3.01 m / 9' 9" |
| Minimum Length: | 1.77m / 5' 8" |
| Maximum rotation angle: | 50° |
| Maximum longitudinal leveling: | 20° |
| Maximum lateral leveling: | 20° |
| Maximum speed: | 2 km/h |
| Weight: | 720 kg + 200 kg ballast (920 kg) |
| Width (tracks spread): | 1.16 m / 3' 7" |
