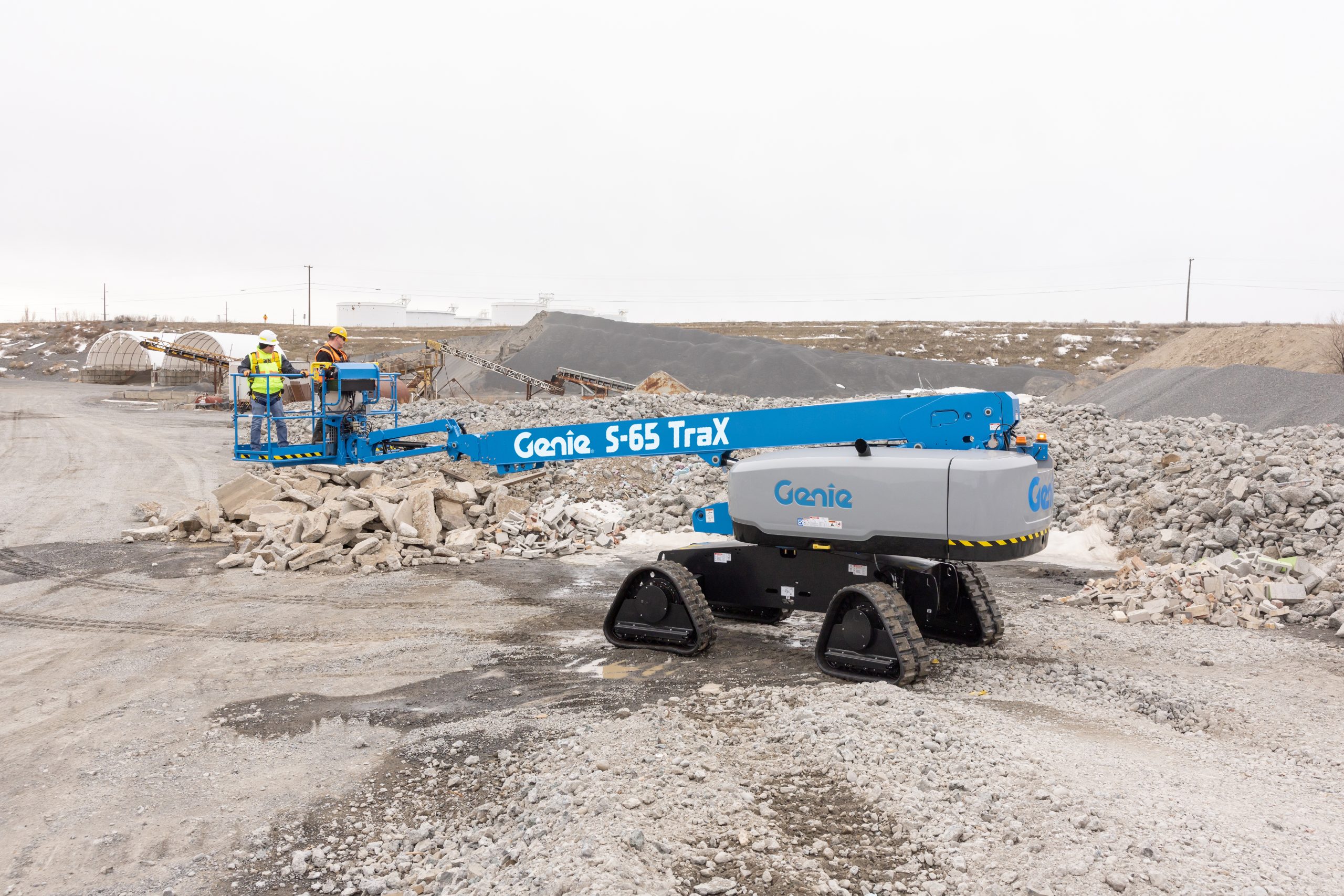

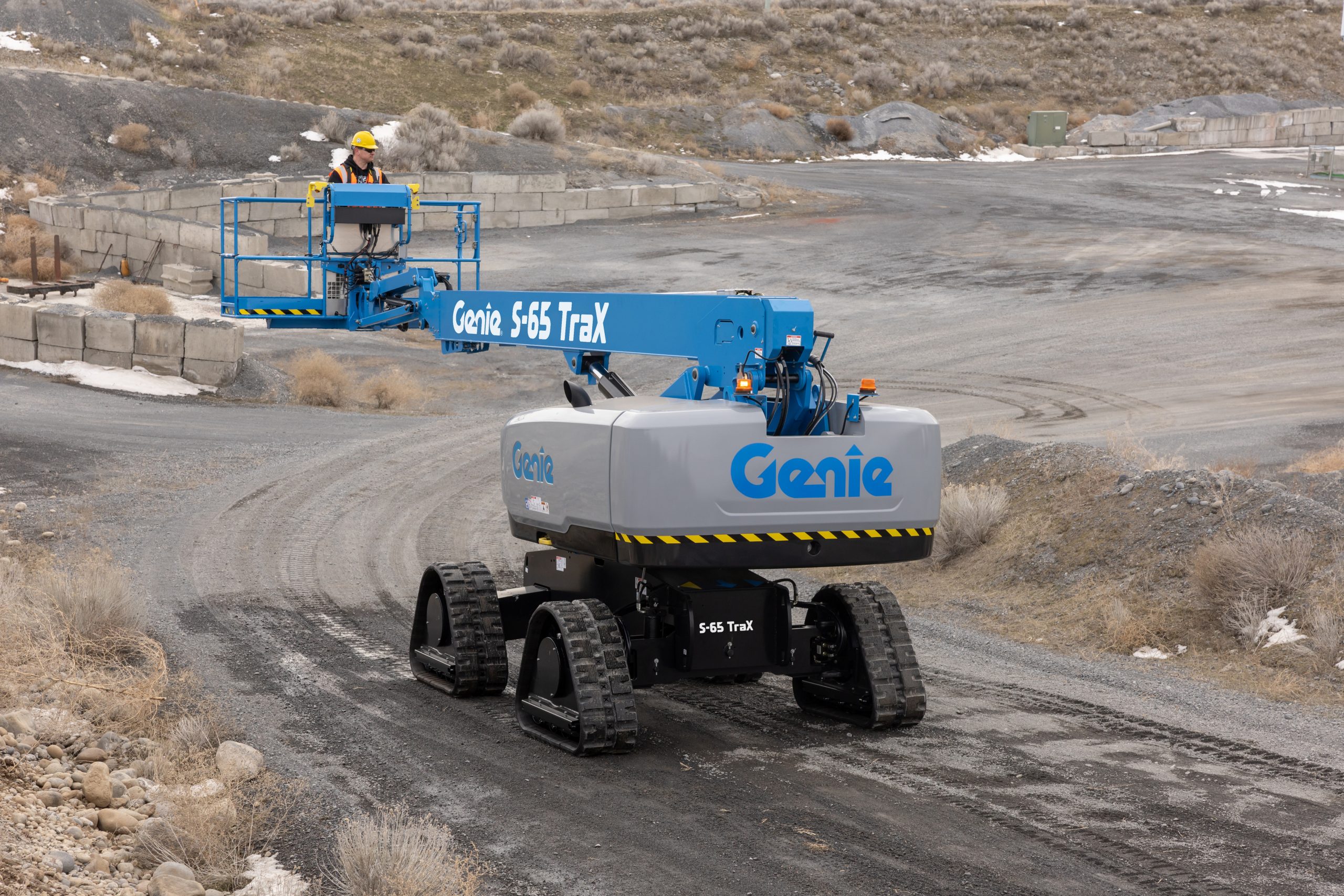

Genie S-65 TraX telescopic boom lift
Description
The S-65 TraX telescopic boom lift is designed to provide exceptional scope, a optimum stability on difficult terrain and a highest productivity on the most demanding construction sites.
Product Description
- Telescopic basket Genie S-65 TraX™ designed for demanding work at height in outdoor environments
- Equipped with TraX track system, combining superior traction and low ground pressure
- Maximum working height of approx. 22 meters, suitable for medium to large-scale projects
- Maximum horizontal range of 16.5 metres, ideal for accessing difficult areas without frequent repositioning
- Motorization high-performance diesel, designed for intensive use on construction sites
- Spacious platform for efficient working with tools and materials
- Sturdy design for difficult site conditions and uneven terrain
- Excellent solution for professionals looking for stability, range and productivity
Applications
- Commercial and industrial construction work
- Industrial plant and infrastructure maintenance
- Installation of mechanical, electrical and metal structures
- Working at height on loose, muddy or unpaved ground
- Outdoor sites requiring large horizontal span
Benefits
- Extended access thanks to greater horizontal reach than articulated booms
- TraX tracks offering excellent grip on difficult soils
- Reduced ground pressure, limiting damage to sensitive surfaces
- Greater stability compared to wheel-mounted telescopic platforms
- High basket load capacity, suitable for heavy tools and equipment
- Continuous turret rotation, for precise positioning
- Gain in time and efficiency on complex sites
Range of motion
Details
| Brand: | Genie |
| Model: | S-65 TraX™ |
| Unit code: | S-65 TraX |
| Minimum Width: | 2.48 m (8 ft 2 in) |
| Minimum Height: | 2.87 m (9 ft 5 in) |
| Maximum horizontal reach: | 16.51 m (54 ft 2 in) |
| Maximum negative range: | 2.65 m (8' 8") |
| Maximum basket capacity: | 300 kg (660 lb) - unlimited range, 454 kg (1,000 lb) - restricted range |
| Minimum Length: | 9.76 m (32 ft) |
| Maximum rotation angle: | Turret: 360° continuous, Basket: 160°. |
| Basket dimensions: | Standard: 2.44 m × 0.91 m (8 ft × 3 ft), Optional: 1.83 m × 0.76 m (6 ft × 2 ft 6 in) |
| Total weight: | 13,098 kg (28,877 lb) |
| Ground pressure: | 193 kPa (28 psi) |
| Maximum speed: | 3.7 km/h (2.3 mph) |
| Capacity | Hydraulic tank: 151 L (40 US gal.) |
| Maximum basket dimensions: | 2.44 m × 0.91 m (8 ft × 3 ft) |
| Stabilizers Upgrade: | Upgradeable via chassis and TraX system |
| Wheelbase: | 2.49 m (8 ft 2 in) |
| Motorization: | Diesel Deutz - 55 kW (74 hp) |
| Weight: | 13,098 kg (28,877 lb) |
| Width: | 2.48 m (8 ft 2 in) |
| Length: | 9.76 m (32 ft) |
| Maximum forward range: | 16.51 m (54 ft 2 in) |
| Horizontal reach (maximum height): | 16.51 m (54 ft 2 in) |
| Width (tracks spread): | 2.98 m (9 ft. 9 in.) |
| Maximum working height: | 21.86 m (71' 8") |
| Maximum floor height: | 19.86 m (65 ft 2 in) |
