Product Description
-
Railway nacelle compact and versatile designed for maintenance and work on railway infrastructures.
-
Maximum working height of 9.5 m (31 ft) allowing easy access to equipment above the tracks.
-
200 kg (440 lb) basket capacity to accommodate two operators and their tools.
-
Horizontal range up to 4.7 m (15.4 ft) to reach work areas without repositioning the equipment.
-
360° rotating turret offering great operating flexibility in confined rail environments.
-
Tracked chassis with integrated rail wheels, which can be used both on rails and in the field.
-
Independent track/rail transmission for optimum mobility on a wide range of surfaces.
-
Self-leveling platform on railway cant for stable, safe working.
-

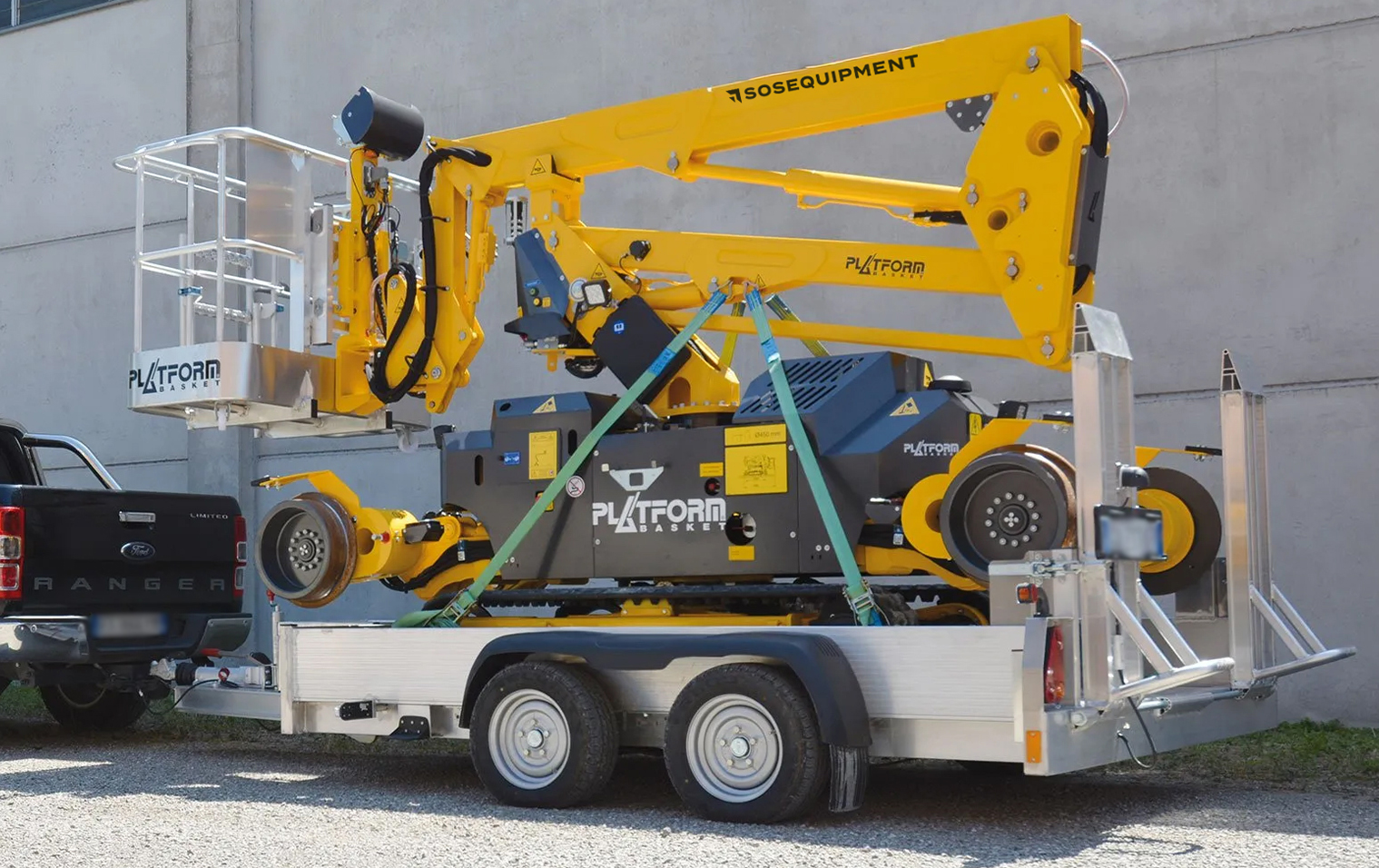

Transportable on light trailer, to facilitate travel between job sites.
-
Available options : lithium batteries, non-marking tracks, single-seat basket or 220 V generator.
Applications & benefits
Applications
-
Maintenance and inspection rail infrastructures
-
Work on catenaries and overhead lines
-

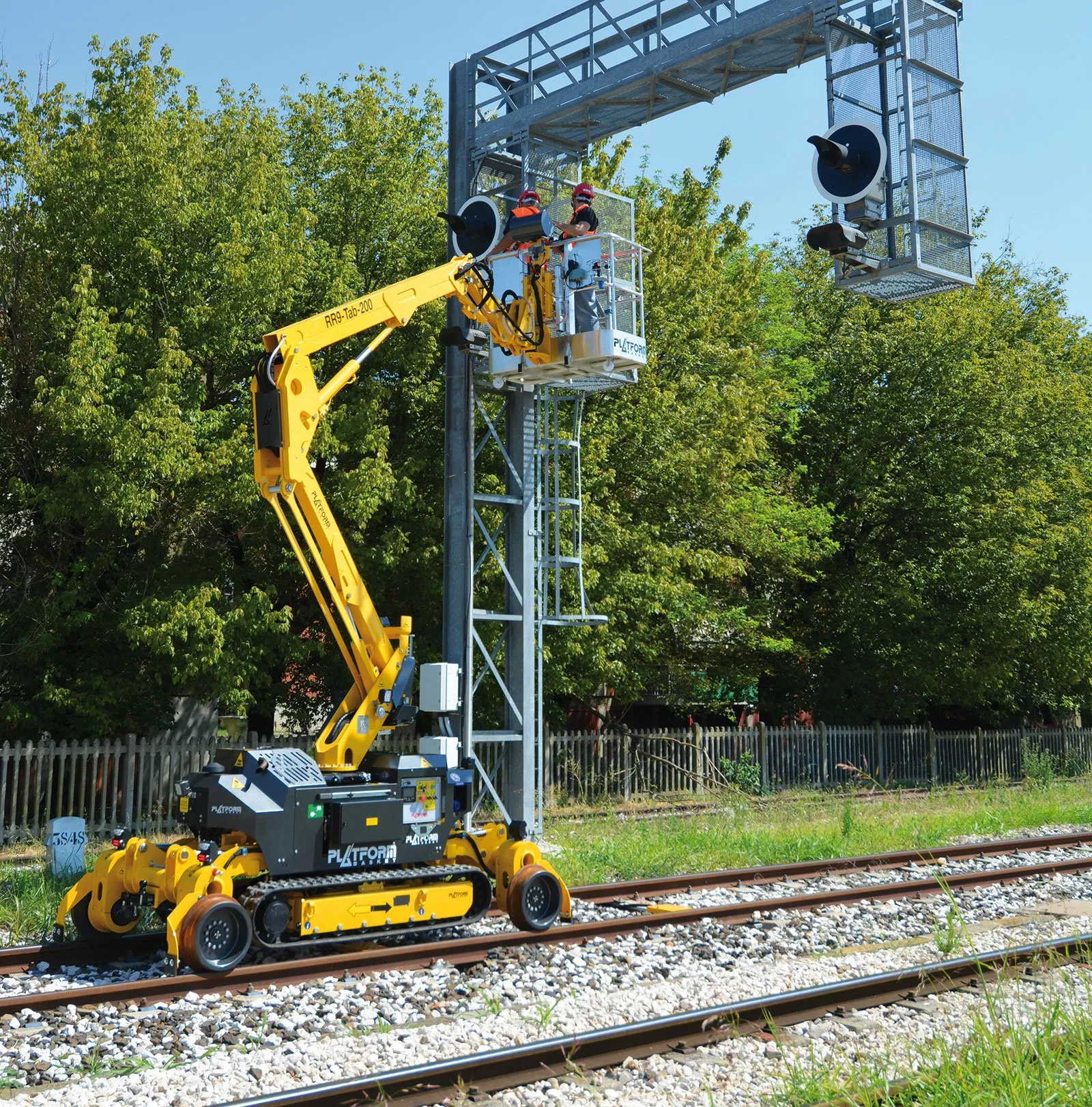

Maintenance of rail signalling
-
Intervention on railway bridges
-
Work in railway stations, tunnels and depots
-
Overhead access in hard-to-reach areas along the rails
Benefits
-
Rail and field mobility thanks to the integrated road-rail system
-
High positioning accuracy with articulated arm and 360° rotation
-
Increased stability on track thanks to the self-levelling system
-
Easy to transport on trailer
-
Electrical option for work in tunnels or sensitive environments
-
2-person basket to work efficiently with tools and equipment
-
Compact format (1.6 m / 5.3 ft wide) ideal for confined spaces
