Platform Basket RR 9/200 rail-road cradle
Description
Product Description

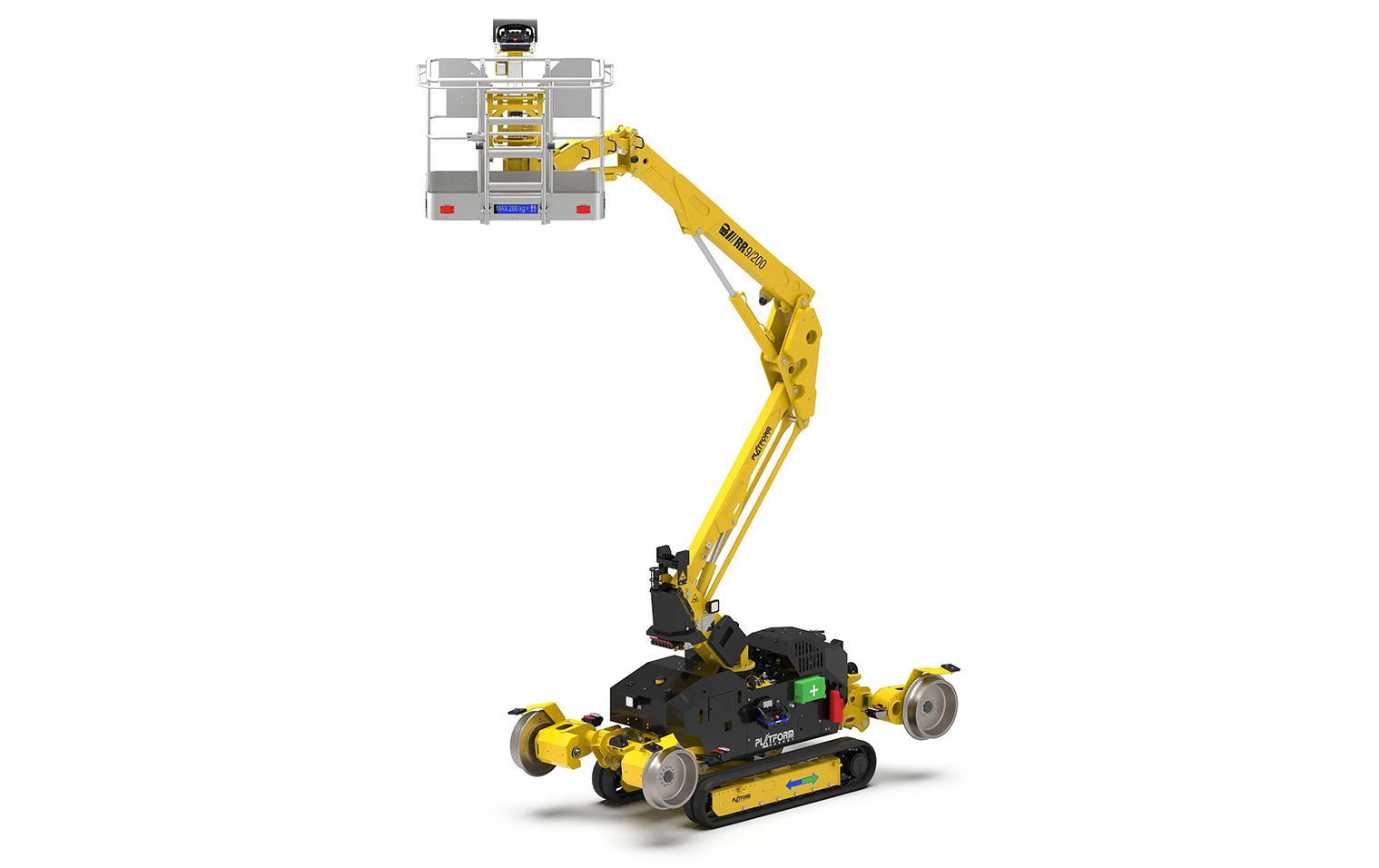

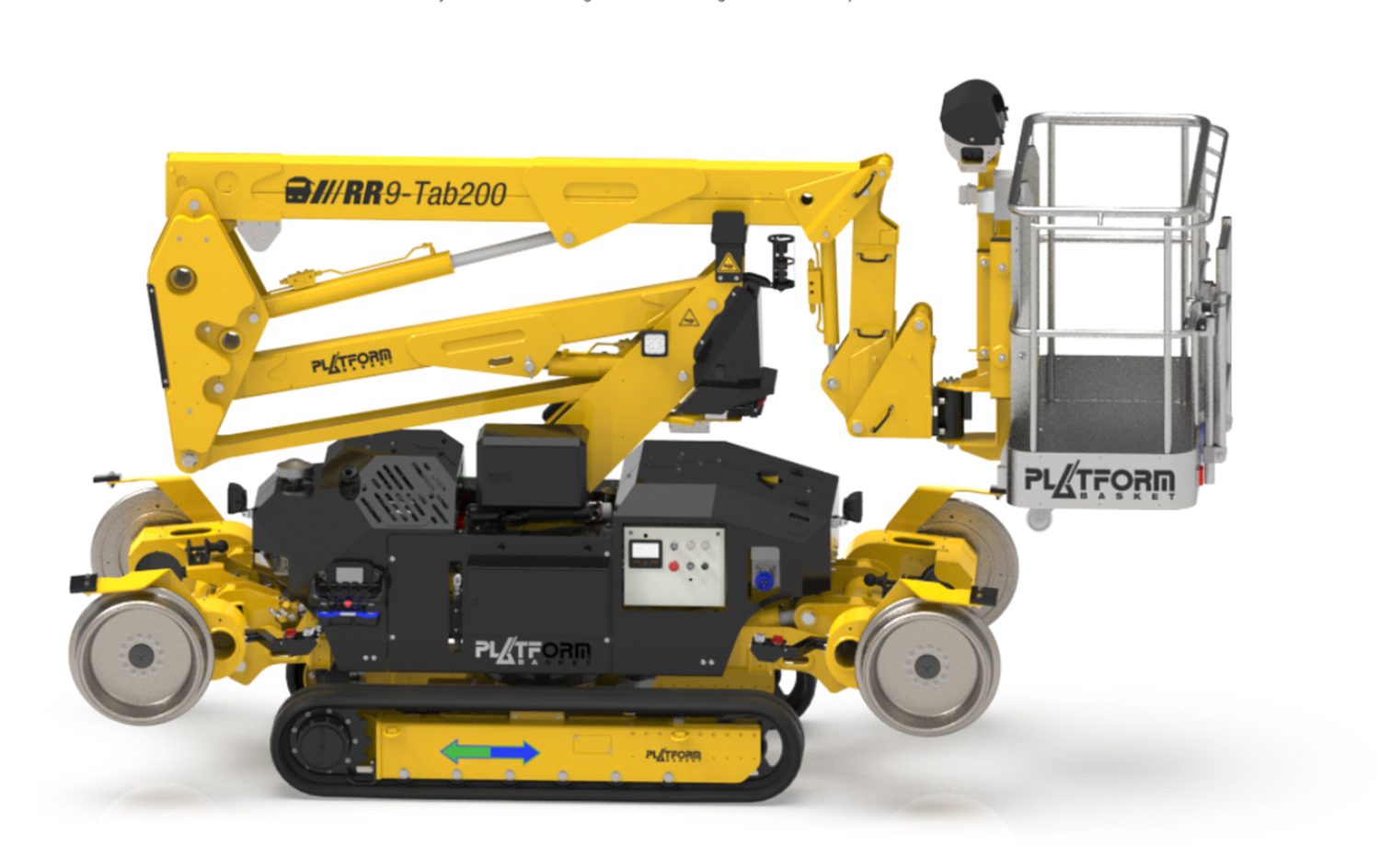

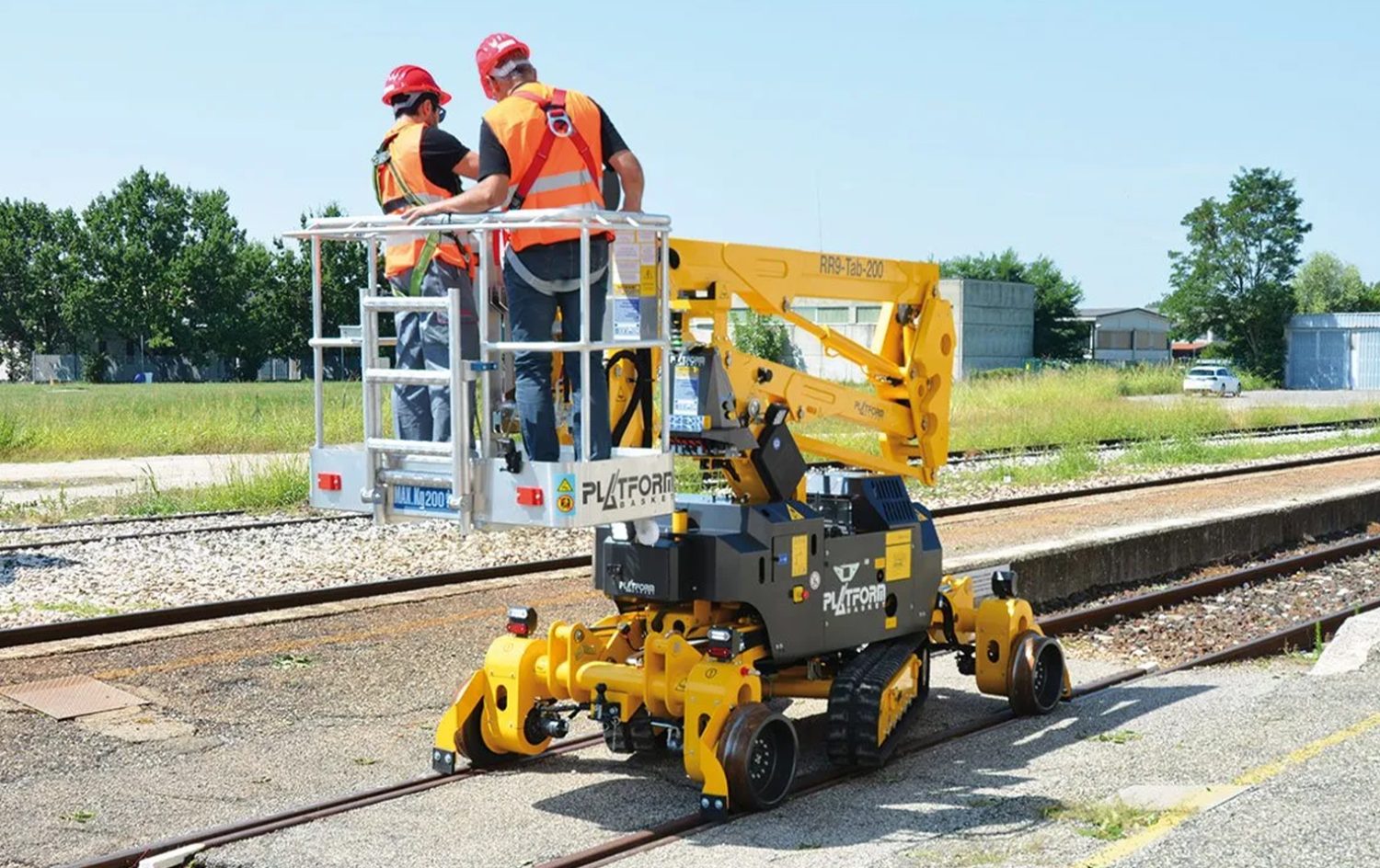

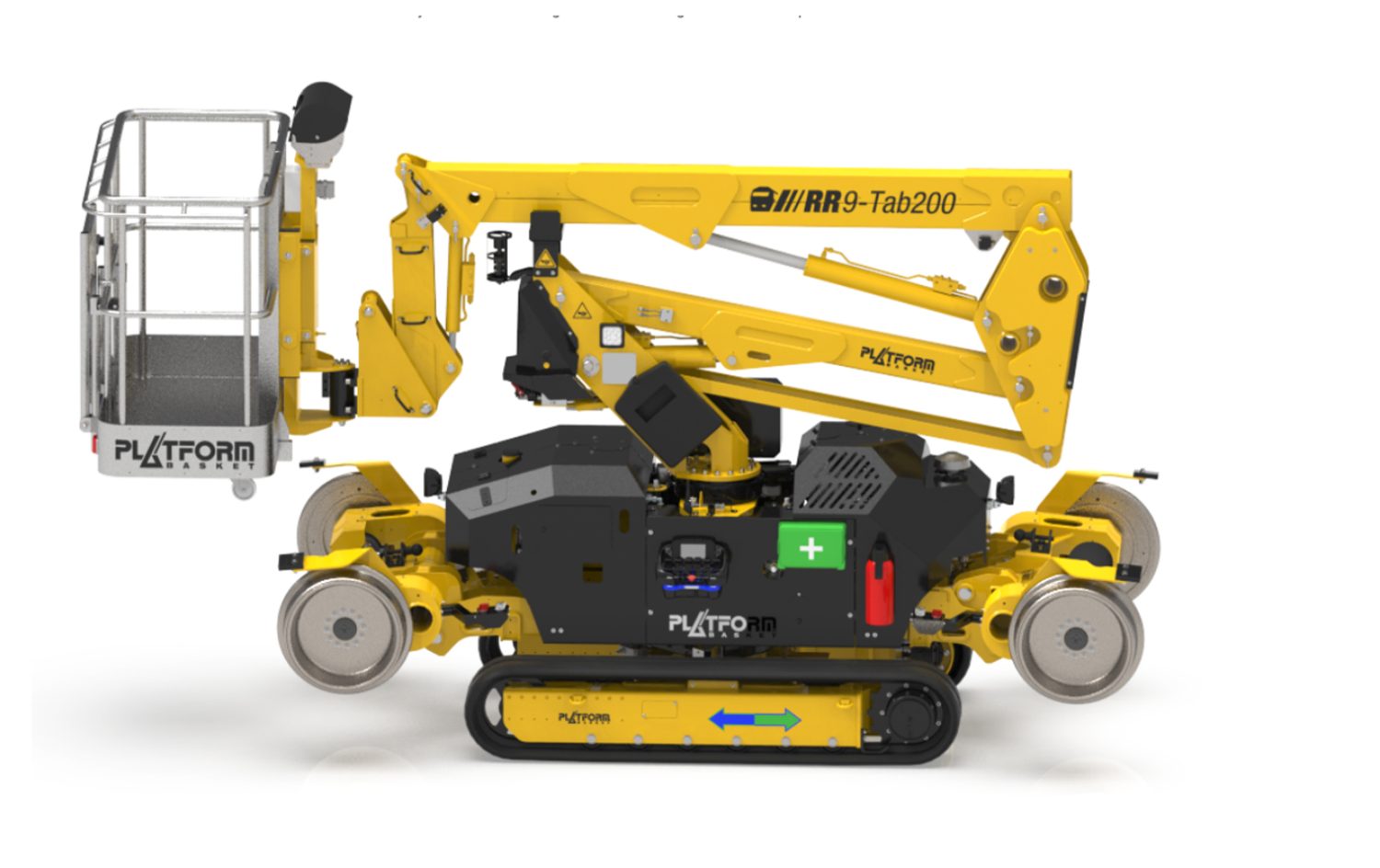

- Platform Basket RR 9/200 tracked aerial work platform, designed for railway maintenance and light aerial work.
- Basket capacity: 200 kg (440 lb), two-person basket
- 360° rotating turret and ±70° rotating basket
- Self-leveling structure, even on railway inclines (CANT)
- Independent transmission for tracks and rail wheels
- 90° swivel tracks for fast track entry and exit
- Kubota diesel engine 10.5 kW
- Electric version with lithium batteries available as an option

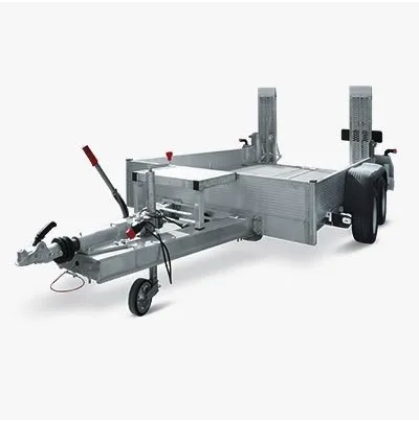

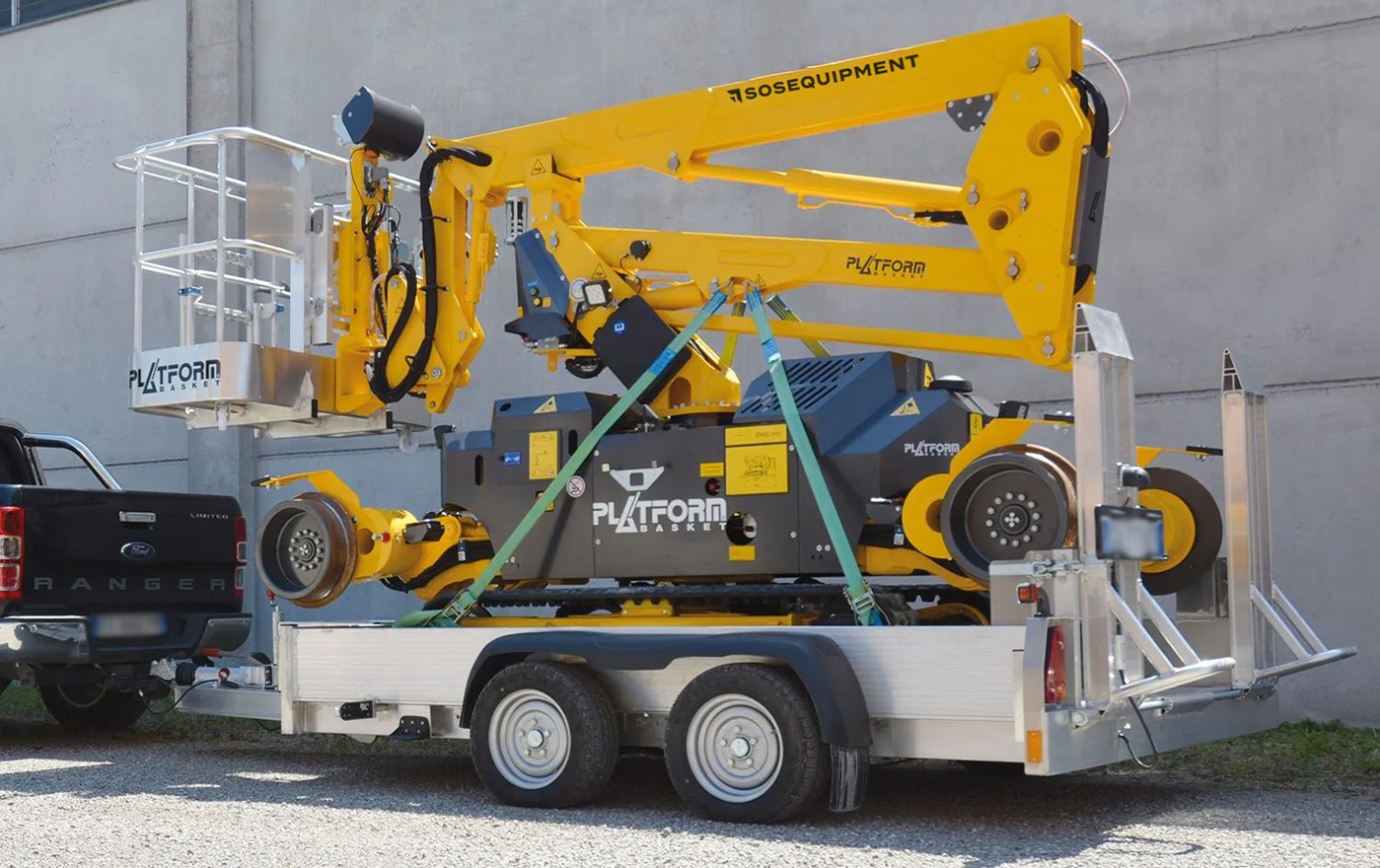

- Designed to be transported on a lightweight trailer
Applications & Benefits
- Specially adapted to light rail maintenance

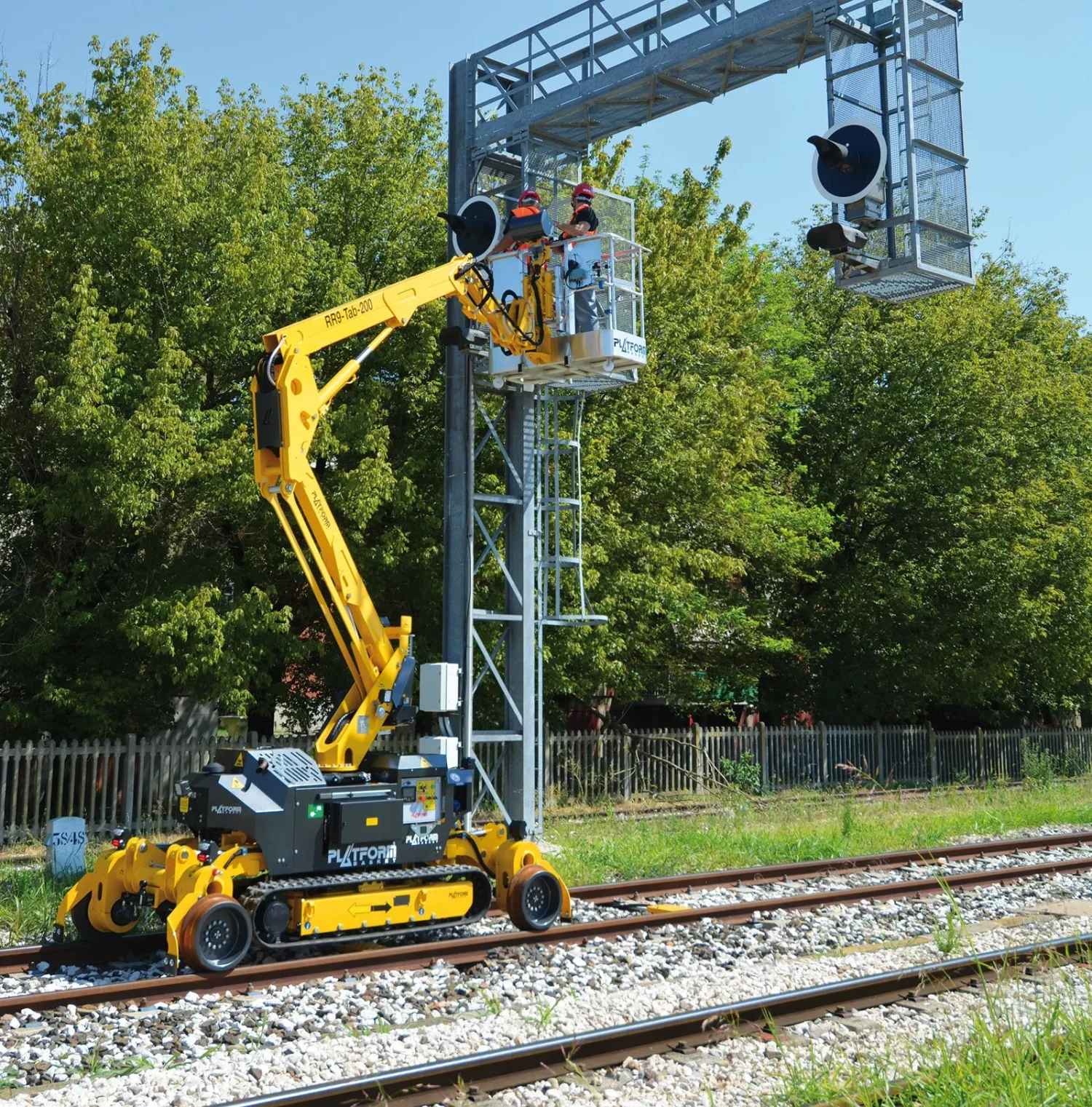

- Ideal for signalling, lighting and railway power line work
- Suitable for use in tunnels, subways and stations
- Can also be used for civil engineering work thanks to its low ground load
- Easy access to tracks without complex alignment maneuvers

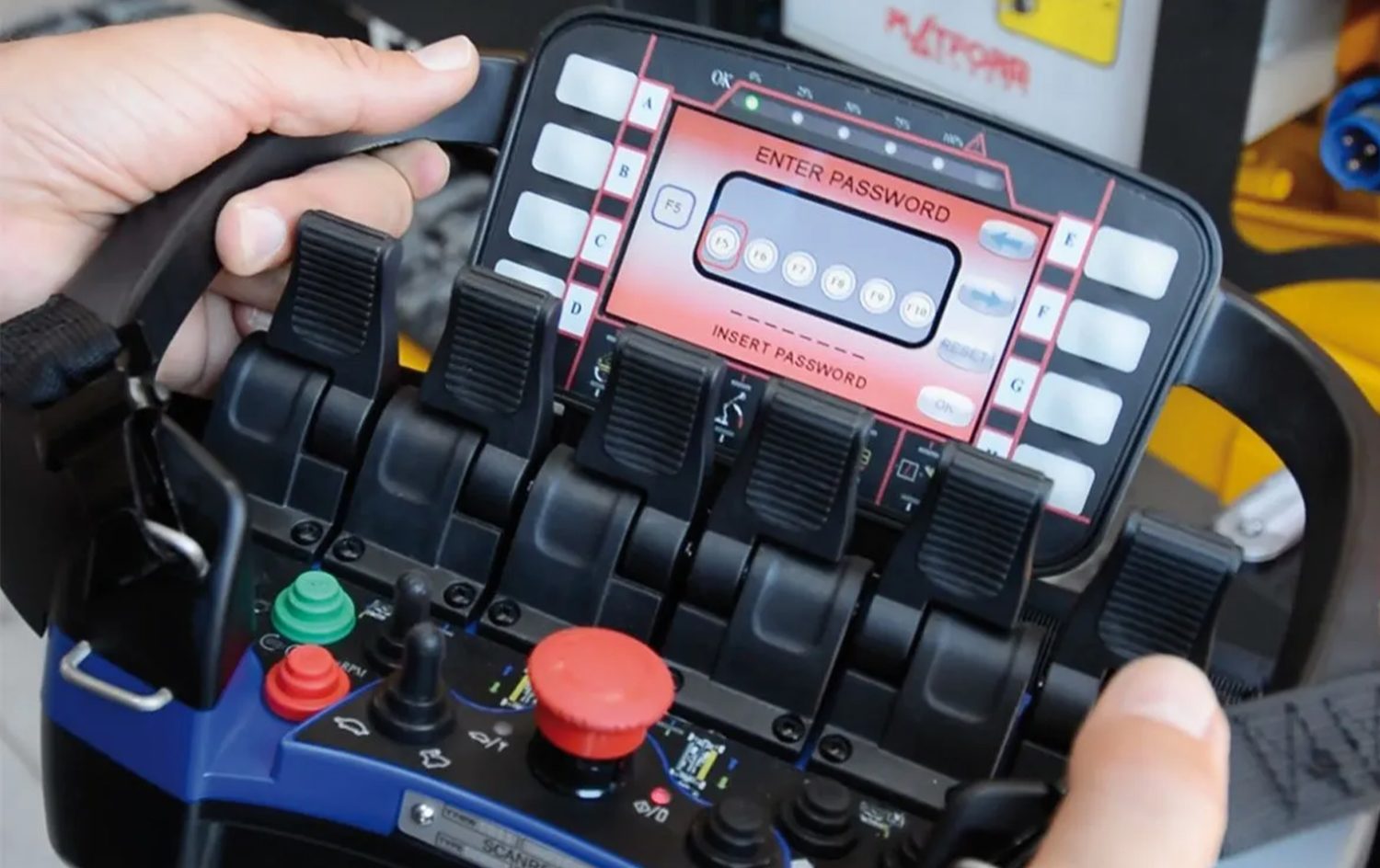

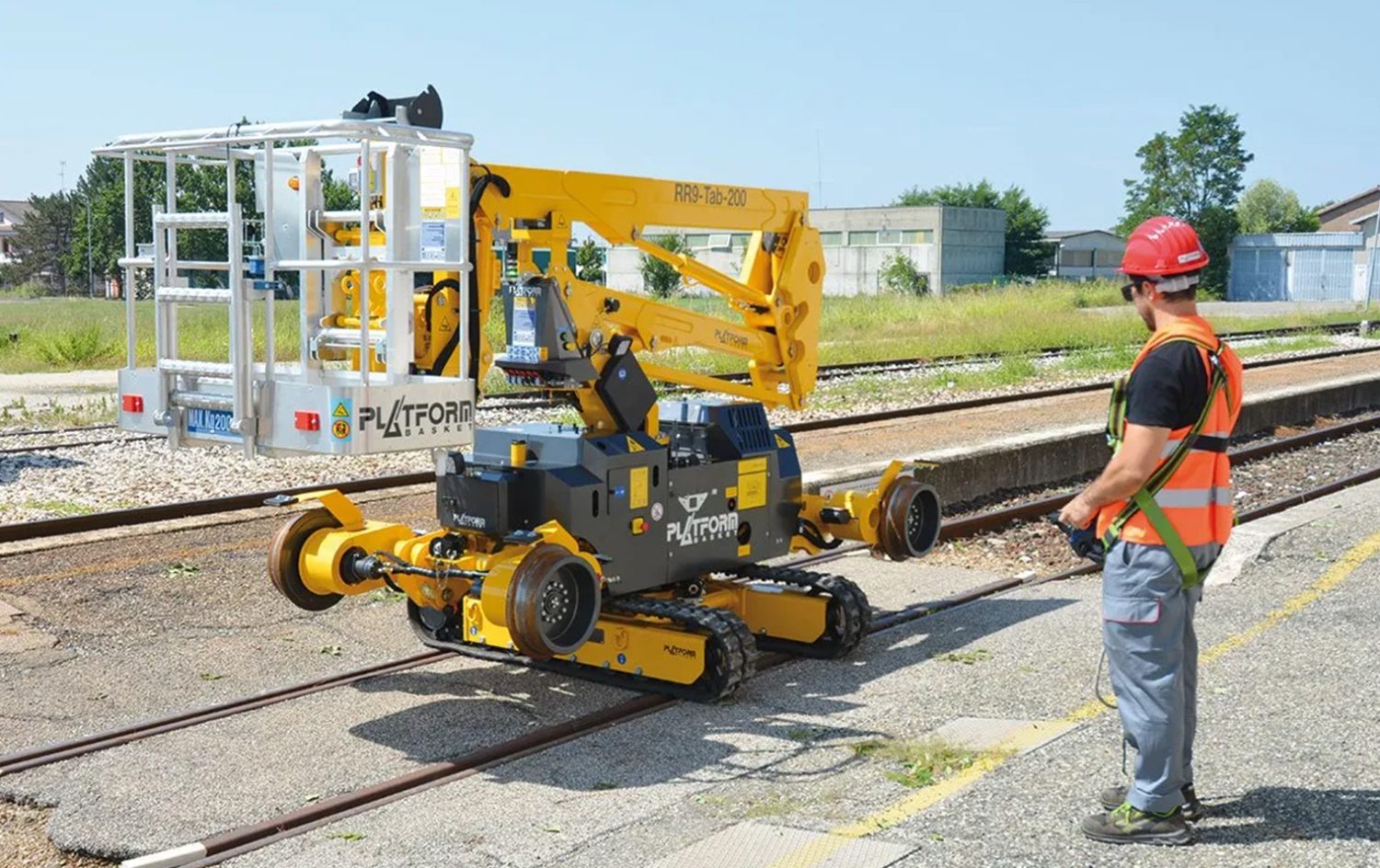

- Can be controlled from the basket or from the ground by remote control
- Compact, lightweight design for on-site versatility
The RR 9/200 is a specialized, reliable aerial platform offering precision, stability and accessibility for complex rail and urban work.

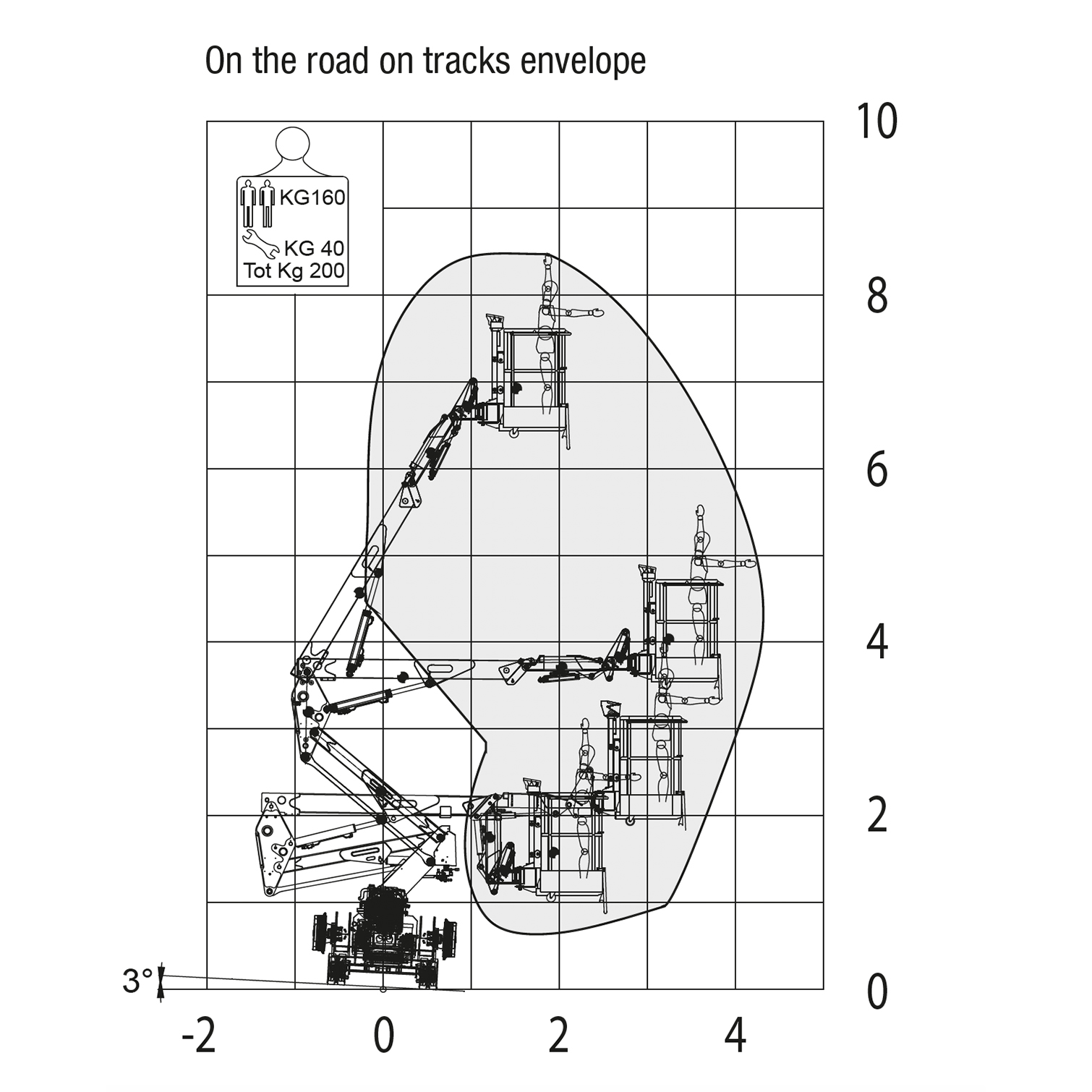

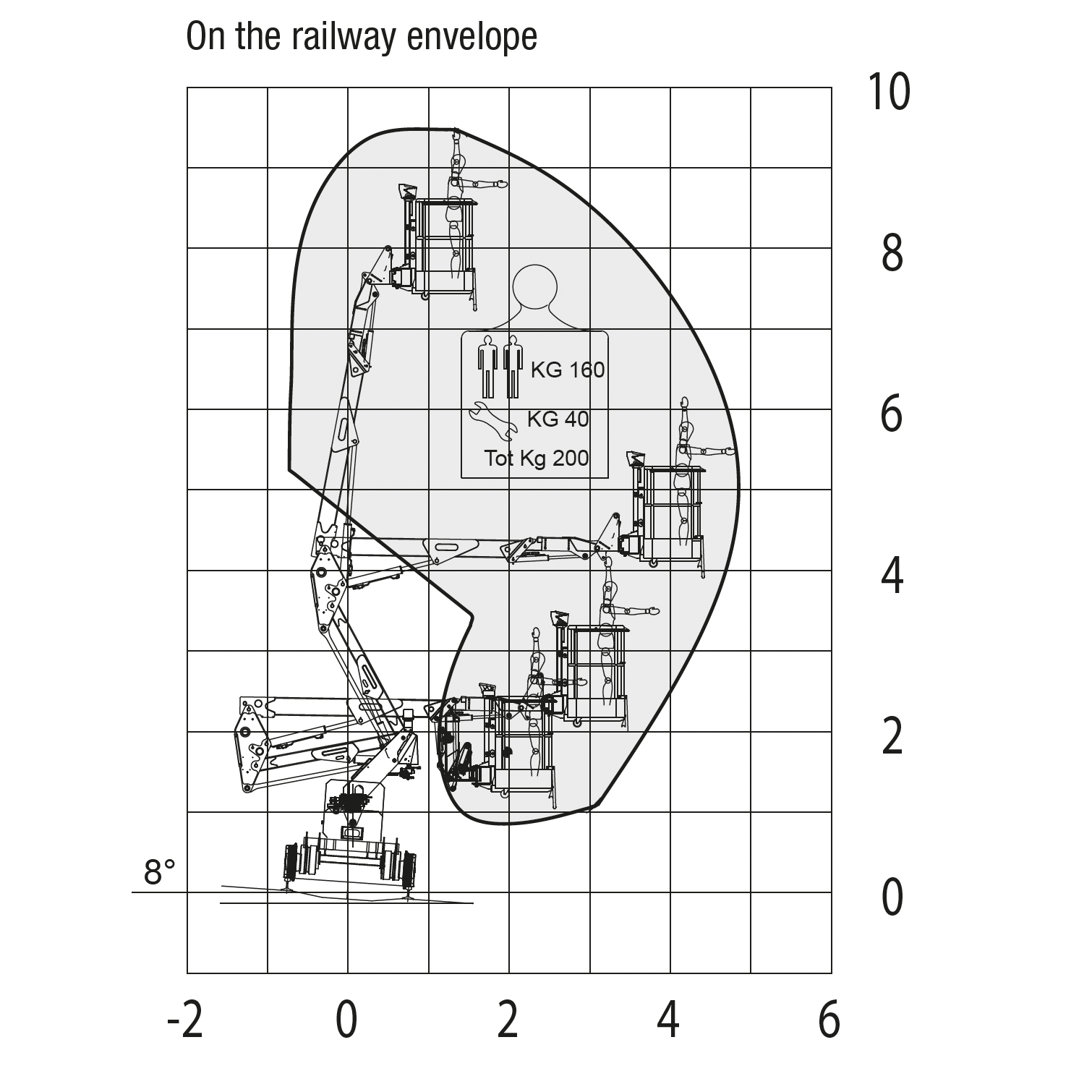

Lifting charters

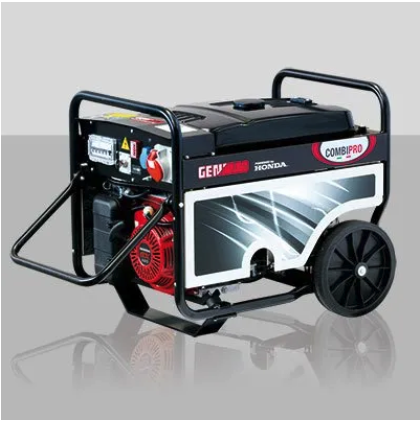

Accessories
Details
| Brand: | Platform Basket |
| Model: | RR 9/200 |
| Minimum Width: | 1.55m / 5'1" |
| Minimum Height: | 1.98m / 6'6" |
| Maximum horizontal reach: | 4,7 m / 15'4" |
| Minimum Length: | 4,10 m / 13'5" |
| Total weight: | 2800 kg / 6173 lb |
| Capacity | 440 lbs / 200 kg |
| Wheelbase: | 1,10 m / 3'7" |
| Maximum working height: | 9,5 m / 31'2" |
